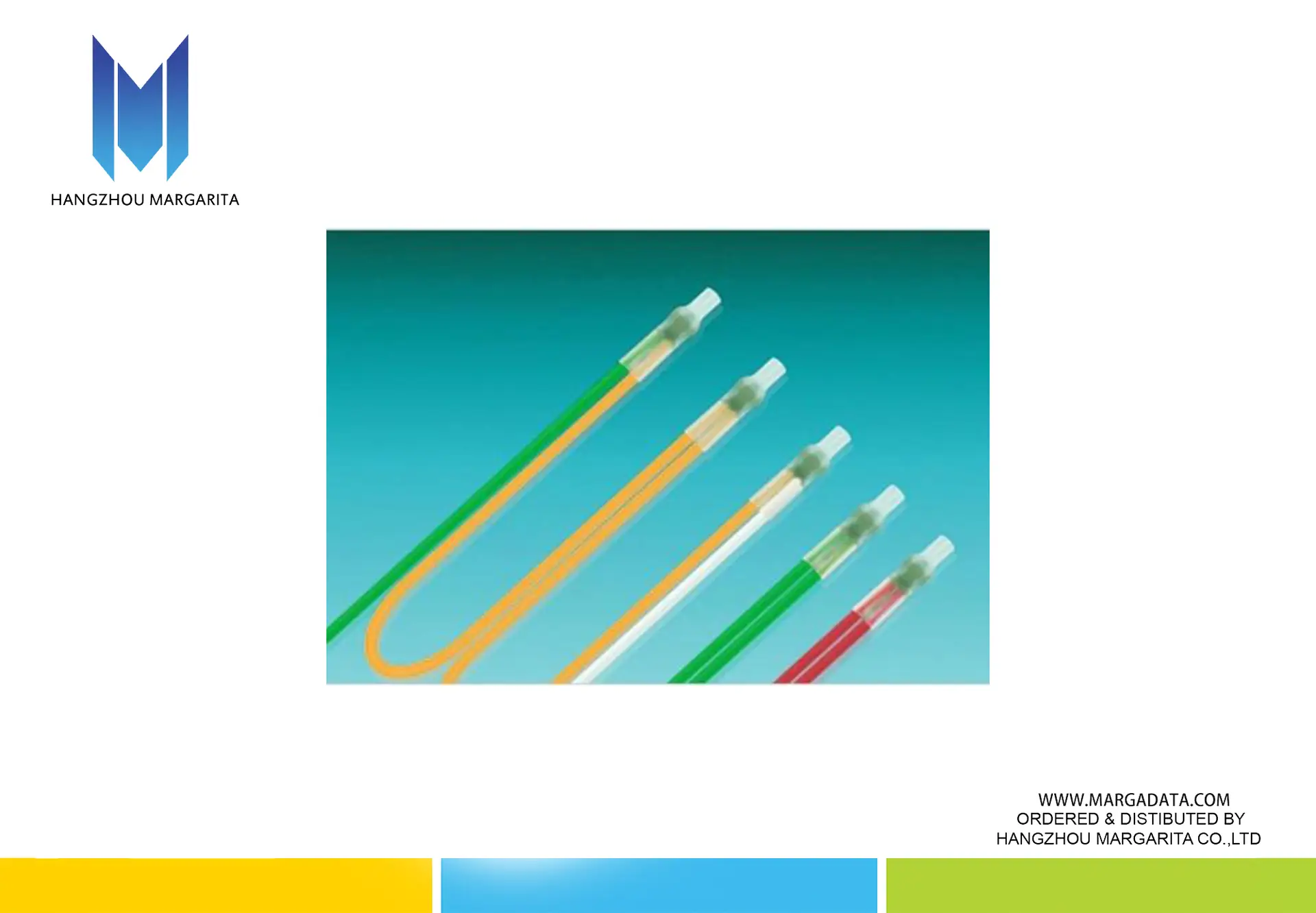

GOODS NAME: 4-PTC triple sensor
HS CODE:
DETAILS:
1. Characteristics
MT-MZ6 Series of PTC Temperature-controlled sensors are the special used for overheat alarm and protection. PTC temperature-controlled sensors are made of mini heat-variable resistors. They are of small size, endurance strength, good stability and excellent sensitiveness. All the technical criteria is of the top level in the world.
2. Application
The sensors can be widely used at those work sites which need overheat protection. When the sensors fixed in those facilities that need overheat protection, they are able to keep the facilities avoid of accidents and damages caused by overheating.3
Data sheet
| Test Item | Single | Trible | |
| Max. operating voltage | 30 | 30 | V |
| Rated response temperature VNAT | See ordering information | ℃ | |
| Tolerance of VNAT | ±5 | ±5 | K |
| Reproducibility of VNAT | ±0.5 | ±0.5 | K |
| Resistance R25 | ≤100 | ≤300 | Ω |
| Resistance of VNAT-5K | ≤550 | ≤1650 | Ω |
| Resistance of VNAT+5K | ≥1330 | ≥3990 | Ω |
| Resistance of VNAT+15K | ≥4 | ≥12 | kΩ |
| Thermal response time | ≤5 | ≤5 | s |
| Insulation test voltage | AC 2.5 | AC 2.5 | kV |
| Max. operating temperature | 200 | 200 | ℃ |
| Max. storage temperature | 160 | 160 | ℃ |
| Min. storage temperature | -25 | -25 | ℃ |
| Weight | 2.0 | 3.5 | g |
